LUMIXELL · BA606 · BA507 · BA607 · BA608 · BA609
RZ anti-glare USB-C bike headlights

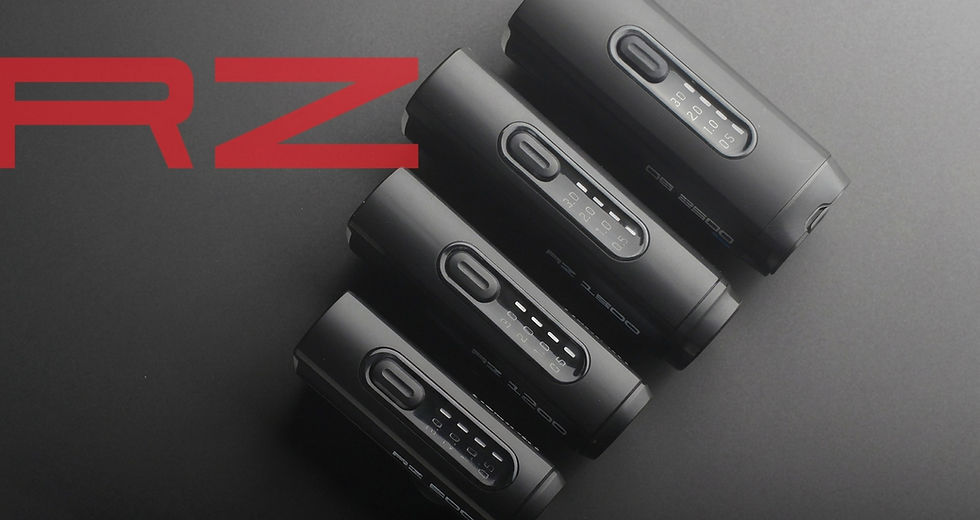

Five USB-C rechargeable bike headlights, from 500 to 2500 lumens, for wholesale and private label. All five have a semi-cutoff beam that keeps light on the road and out of oncoming riders’ and drivers’ eyes, and a PowerBar display that shows the hours of light left. RZ 900, RZ 1500 and DB 2500 have a replaceable battery that opens with a coin.
500–2500 lm
Semi-cutoff beam
Replaceable battery
IPX5
5
models from four body sizes
2500 lm
top output (DB 2500)
IPX5
water resistance, sealed USB-C cap
UN38.3
battery tested, SDS on request
VERSIONS
Five output levels, one family
One range covers lit city streets through fast riding on dark roads. Weights include the silicone strap.
BA609
DB 2500
2500 lumens, spot and flood lenses. 2 × 18650, 3200 mAh, replaceable. 8.5 h charge. Aluminium, 118 × 34 × 48 mm, 275 g.
BA608
RZ 1500
1500 lumens. 21700, 4000 mAh, replaceable. 5.5 h charge. Aluminium, 124 × 34 × 48 mm, 225 g.
BA607
RZ 1200
1200 lumens. 18650, 3200 mAh, built in. 4.5 h charge. Aluminium, 108 × 35 × 31 mm, 176 g.
BA507
RZ 900
900 lumens. 18650, 3200 mAh, replaceable. ABS, 115 × 36 × 31 mm, 139 g.
BA606
RZ 500
500 lumens. 18500, 1500 mAh, built in. 4 h charge. ABS, 91 × 36 × 31 mm, 112 g.
SPECIFICATIONS
Modes and runtimes
Lumens and runtimes from Lumixell factory tests. For Pulse Flash, DRL and Flash, lumens are peak output.
DB 2500 (BA609)
Eco
Low
Mid
High
Max
Pulse Flash
DRL
Flash
50 lm · 45 h
715 lm · 3 h 12 min
1050 lm · 2 h 6 min
1550 lm · 1 h 36 min
2500 lm · 1 h 12 min
2500 lm · 2 h 42 min
2500 lm · 2 h 42 min
2500 lm · 14 h 42 min
RZ 1500 (BA608)
Eco
Low
Mid
High
Max
Pulse Flash
DRL
Flash
45 lm · 35 h
225 lm · 7 h
600 lm · 2 h
975 lm · 1 h 30 min
1500 lm · 1 h
1500 lm · 3 h 40 min
1500 lm · 3 h 50 min
1500 lm · 19 h
RZ 1200 (BA607)
Eco
Low
Mid
High
Max
Pulse Flash
DRL
Flash
36 lm · 32 h
180 lm · 6 h 30 min
480 lm · 2 h 30 min
780 lm · 1 h 30 min
1200 lm · 1 h
1200 lm · 2 h 30 min
1200 lm · 3 h
1200 lm · 13 h
RZ 900 (BA507)
Eco
Low
Mid
High
Max
Pulse Flash
DRL
Flash
40 lm · 40 h 30 min
200 lm · 6 h 24 min
450 lm · 3 h
750 lm · 2 h 30 min
900 lm · 2 h
900 lm · 2 h 18 min
900 lm · 11 h 42 min
900 lm · 18 h
RZ 500 (BA606)
Eco
Low
Mid
High
Max
Pulse Flash
DRL
Flash
40 lm · 16 h
75 lm · 7 h 30 min
200 lm · 3 h
325 lm · 2 h
500 lm · 1 h 30 min
500 lm · 3 h
500 lm · 4 h
500 lm · 16 h
Certifications and shipping documents
Certification
CE and EMC
Battery
Tested to UN38.3, with a safety data sheet (SDS) and sea and air transport reports, available on request
All models
Water resistance
IPX5, with a sealed cap over the USB-C port
Charging
USB-C, 5 V
Power bank
RZ 900, RZ 1200, RZ 1500 and DB 2500
Replaceable battery
Smart features
PowerBar burn-time display, battery check, mode memory, low-battery Eco mode, overheat protection
Mount
Silicone handlebar strap. Out-front and other mounts available.
In the box
Headlight, silicone strap, USB-C cable
Beam range, RZ 1500
About 165 m (6,850 cd peak)
CUSTOMIZATION
RZ under your brand
Organix Concept offers RZ as OEM and ODM, from design through to production, and manages sampling and quality control for every order.
Tell us the model, quantity, and your logo and packaging needs, and we’ll reply with pricing, samples and lead times.
OEM
Any RZ model under your brand, with your logo and packaging.
ODM
A new version developed to your brief, for example a different output, battery or beam.
Custom logo
On the side of the light body, where the model name is printed.
Custom packaging
A closed box for online sales, or a window box for in-store display.
Custom colour
A body colour of your choice once the order reaches the minimum quantity (standard colour is black).
Custom model name
Your own model name on the body in place of “RZ 1500”, once the order reaches the minimum quantity.
Mounts and accessories
Silicone strap as standard. Options include an out-front mount (Garmin-compatible on top, GoPro-compatible underneath) and a quick-release strap.
BUYER FAQ
Questions buyers ask
What is the semi-cutoff beam?
All five RZ models have a lens that gives the beam a flat upper edge, like a car’s dipped headlight. Light lands on the road ahead instead of at eye level, so oncoming people are not dazzled. DB 2500 adds a second lens: a spot for distance and a flood for the edges of the road.
Which models should a range include?
RZ 500 and RZ 900 suit lit city streets. RZ 1200 suits roads that are lit in parts. RZ 1500 and DB 2500 suit dark roads, fast riding and long rides. All five share the PowerBar display, eight modes and IPX5 rating.
Which models have a replaceable battery?
RZ 900, RZ 1500 and DB 2500. The battery cap opens with a coin, so riders can swap in a charged battery without tools. These three models meet the removable and replaceable battery requirements of the EU Battery Regulation (EU) 2023/1542, which apply from 18 February 2027. RZ 500 and RZ 1200 have a built-in battery.
What is the PowerBar display?
Four marks on top of the light show the hours of light left in the mode in use: 3, 2, 1 and 0.5 hours. While charging, they show 25, 50, 75 and 100%.
Can I sell RZ under my own brand?
Yes. We supply any model as OEM with your logo and packaging, or develop a new version as ODM.
Can I get samples?
Yes. Contact us with the models you want to test.
What documents can you provide for shipping?
CE and EMC, plus the battery’s UN38.3 test report, safety data sheet and sea and air transport reports, all available on request.
Is RZ StVZO approved?
Not yet. RZ is not StVZO certified, so it is not approved for road use in Germany.
What is the minimum order quantity?
It depends on the model and customization. Contact us for pricing, minimum order quantities and lead times.
